A QR code is a two-dimensional barcode. Instead of arranging information only along one horizontal line, it uses a grid of light and dark modules. That grid can represent a website address, a short message, contact details, Wi-Fi credentials, or another supported text payload.

The code itself is not an internet service. It does not automatically track scans, update its destination, or prove that the destination is trustworthy. It is a compact way to encode information so a compatible reader can recover it.

Reading the visible structure

The three large squares near the corners are finder patterns. They help a scanner locate the code and understand its orientation. Smaller alignment patterns help compensate for perspective and distortion. Timing patterns establish the rhythm of the grid, while format information tells the reader which error-correction level and mask are in use.

Around the outside sits the quiet zone: an empty border that separates the code from surrounding artwork or text. It may look optional to a designer, but it gives the scanner a clean boundary. Crowding a code can make an otherwise valid file unreliable.

The remaining modules contain encoded data plus recovery information. A mask is applied to avoid visual arrangements that are difficult for readers. The result looks random, but every region has a job.

What happens during a scan

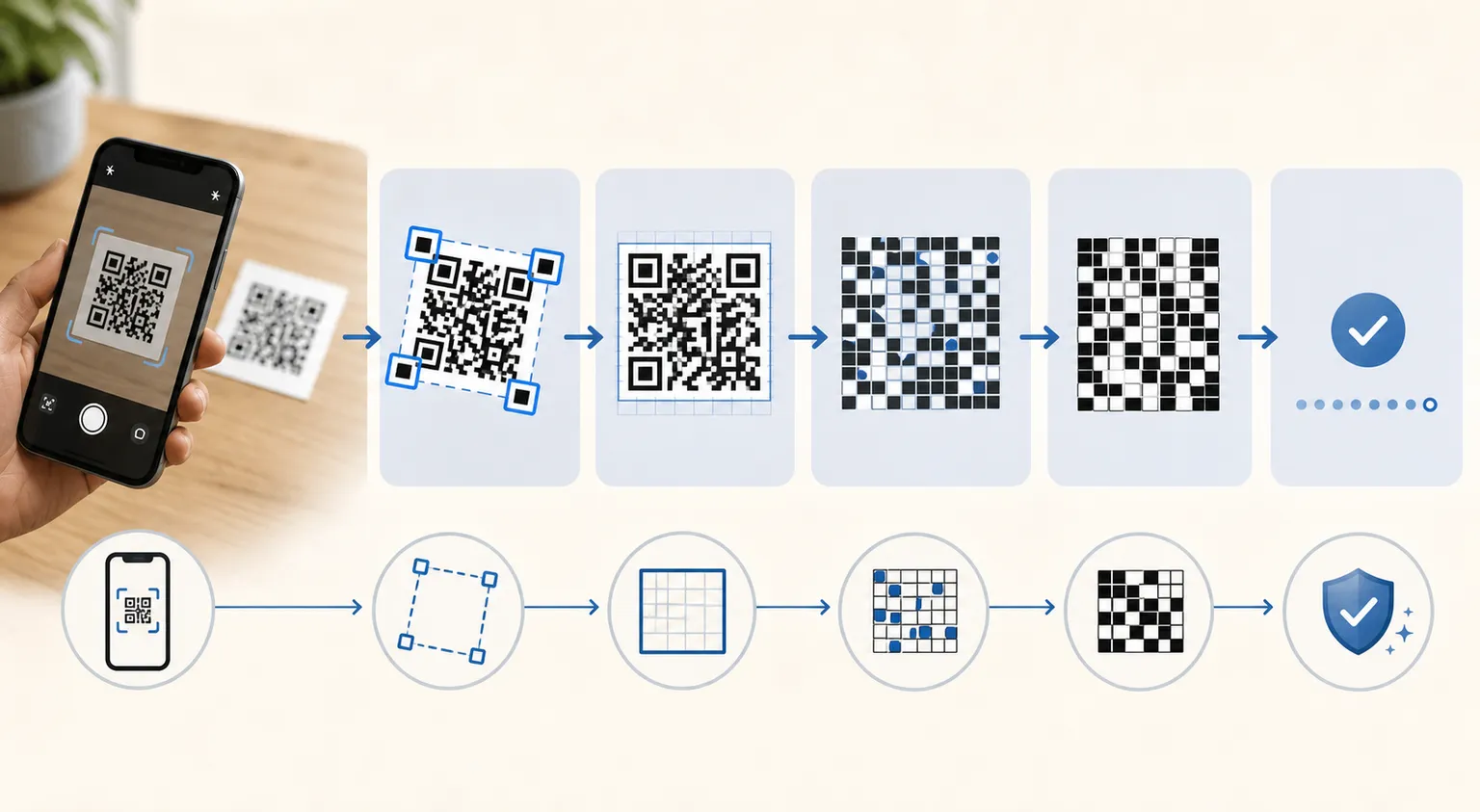

A camera app first searches the frame for the finder patterns. Once it detects them, it estimates the code’s boundaries and corrects for rotation and perspective. It samples the module grid, interprets the format information, reverses the mask, and uses error correction to recover damaged or uncertain data.

The reader then interprets the payload. If it begins with https://, the app may offer to open a browser. If it contains Wi-Fi syntax, the operating system may offer to join a network. This final behavior belongs to the scanner or operating system, not to the printed pattern.

An original example

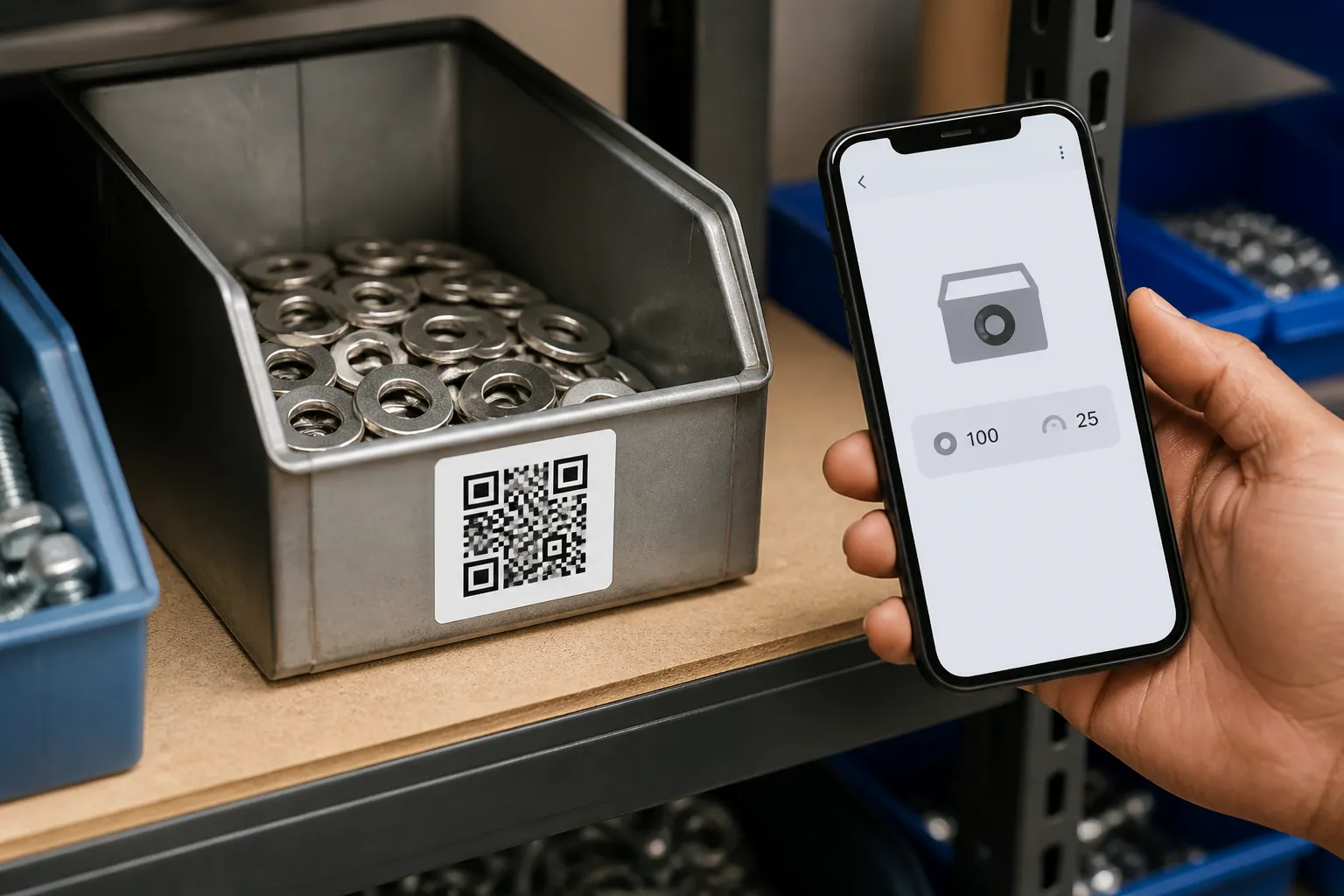

Imagine a workshop label containing this text:

Bin 14 - M4 stainless-steel washers

The QR code can store those words directly. Scanning it does not contact HighEndDIY or another server. A different label might store https://example.com/bin-14, which asks the scanner to open an online page. The two codes may look equally complex while producing very different actions.

Static pattern, optional dynamic service

A QR pattern normally stores a fixed payload. Services marketed as “dynamic QR codes” usually encode a short redirect URL controlled by the service. The printed pattern stays static; the server changes where that redirect leads. This can be useful, but it introduces hosting, privacy, longevity, and subscription considerations.

HighEndDIY’s initial generator creates ordinary static codes. There is no redirect record, scan dashboard, or account behind them.

Practical limits

More information requires more modules, creating a denser pattern. Dense codes need more physical space and better printing. Logos remove or obscure usable modules, low contrast reduces the reader’s confidence, and reflective or curved surfaces add distortion. Error correction helps, but it is not permission to ignore basic design.
